Traditional Gas Furnace
AMVM97
Traditional Heating & Cooling

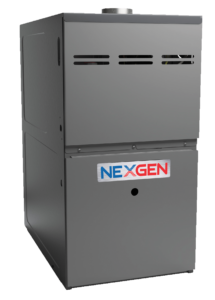

The AMVM97 is a high-efficiency modulating variable-speed gas furnace. This HERS-tested traditional furnace offers up to 98% AFUE; this means 98 cents of every dollar spent on energy goes into heating your home. Efficient, quiet, and built with reliable parts, the system provides continuous air circulation and filtration to maintain comfort at all times. Its performance is continuously monitored by ComfortBridge™ Technology while the CoolCloud™ HVAC app enables fast system connection, configuration, and diagnostics by qualified technicians.
Features
Quiet Performance
Engineered Longevity
Energy Efficiency
Copeland® CoreSense Diagnostics
Accessories
AM11 CleanFit
Honeywell Pro 9000
Evaporator Coil
Product Summary
Numerous advanced components enable the AMVM97 to provide unparalleled performance. Some of the most advantageous components and technologies it contains include:
- Stainless Steel Tubular Primary Heat Exchanger: Constructed using wrinkle-bend technology, the primary exchanger is paired with a secondary stainless steel heat exchanger for even more durability and efficiency.
- Variable-Speed Circulator Motor: Remains quiet during startup, shutdown, and everywhere in between, while maintaining high efficiency.
- Silicon Nitride Igniter: Replaces a pilot light that is traditionally a source of energy wastage, adding efficiency and durability.
- Self-Calibrating Gas Valve: This modulating valve auto-configures, easing installation and ensuring the furnace operates most appropriately for its environment.
- Variable-Speed, Induced-Draft Blower: Promotes quiet operation and precise control while contributing to energy efficiency as well.
The modulating furnace is built into an insulated cabinet that can be configured for up-flow, horizontal left or right, or downflow, horizontal left or right. This cabinet is designed for multi-position installation and certified for direct- and non-direct vent configurations. The heat exchanger and blower section are fully insulated.
In addition to the smart app for certified technicians, the unit includes smart diagnostics. A self-diagnostic control board features a dual 7-segment display that receives output from a constant memory fault code history. The gas furnace is also built to adapt to heating or cooling demands thanks to its variable-speed airflow system, while multiple fan speed options allow for quieter air circulation. For those expecting more from their furnace, the AMVM97 also offers Auto-Comfort and enhanced dehumidification modes.
Other Resources

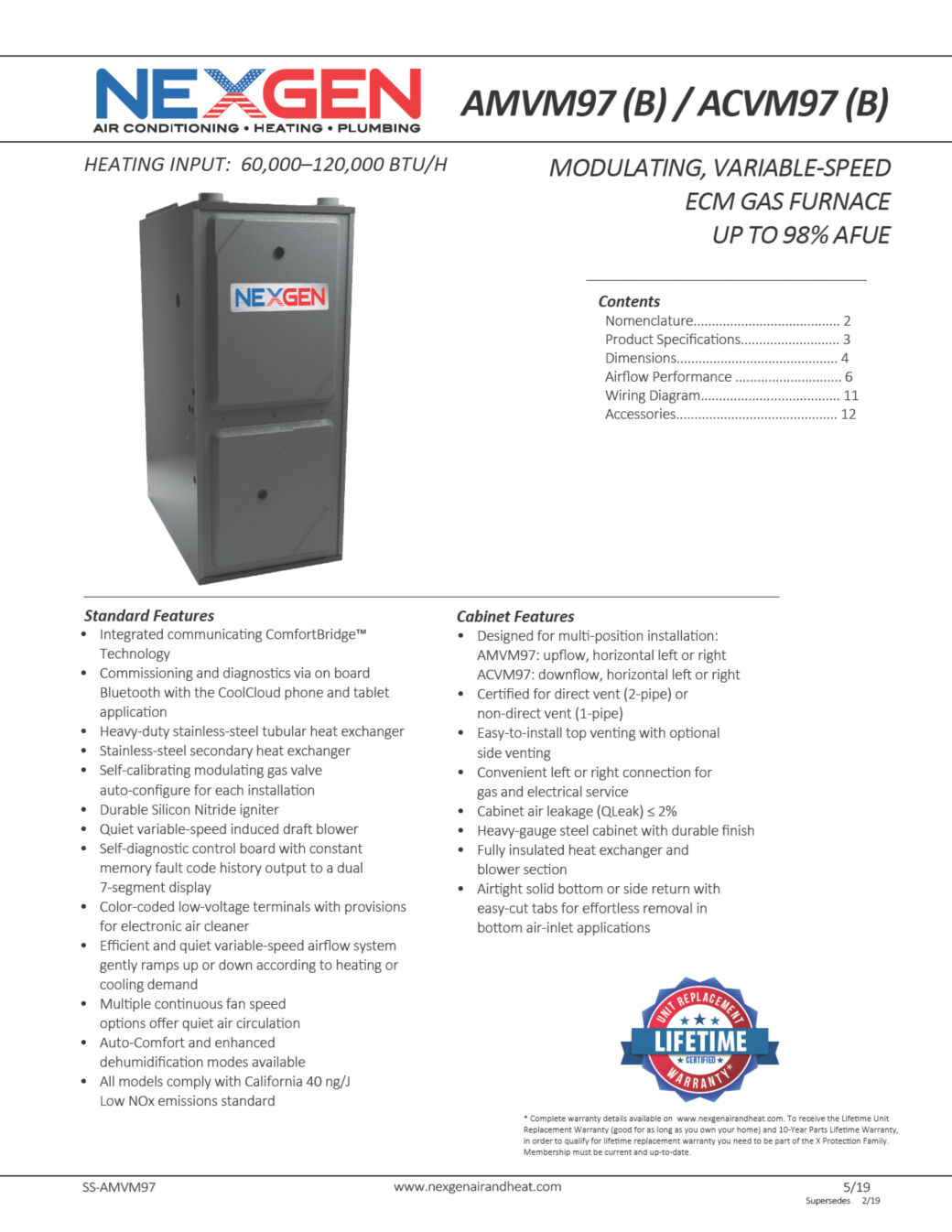

Specifications
- All jobs are 100% permitted and HERS tested.
- 98% AFUE
- The CoolCloud™ HVAC app – Enables technicians to connect to select HVAC systems
- Stainless-Steel Tubular Primary Heat Exchanger
- Efficient and Quiet Variable-Speed Circulator Motor
- Durable Silicon Nitride Igniter
- Self-Calibrating Modulating Gas Valve
- Quiet, Variable-Speed, Induced-Draft Blower
- Continuous Air Circulation
- Self-Diagnostic Control Board
- Heavy-Gauge Steel Cabinet
- Thermally Insulated Cabinet
